Other Name:High Abrasion Furnace Black-low Structure; HAF-LSPhysical & Chemical...

Product Details

Product Tags

Other Name:High Abrasion Furnace Black-low Structure; HAF-LS

Physical & Chemical Properties: Carbon black N326 has iodine adsorption value 82g/kg, and DBP adsorption 72cm3/100g. The N326 compound has high re-inforcement and low heat-up.

Application:Carbon black N326 is used in the tread compounds with high strength and low heat-up. It is also used in the conveyor belt, seals and other high performance compounds.

Performance Features

•             Good tear resistance

•             Good flex fatigue resistance

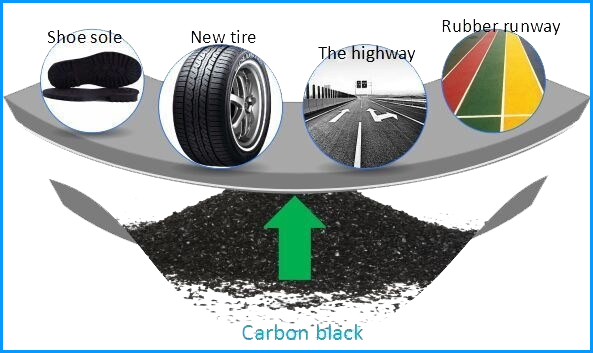

Typical Applications

•             Carcass

•             Conveyor belt covers

•             Hose

•             Cots

•             Cable

•             Rubber products

•             Ink

•             Coating

•             Plastic

•             Printing and dyeing

Test ItemsUnitIndex
Iodine Adsorption Numberg/kg82±5
Oil absorption Number(OAN)10-5m3/kg72±5
Crushed OAN (COAN)10-5m3/kg68±4
CTAB absorption surface Area-N2103m2/kg83±6
Tint Test, Reflectance From ITRB%111±5
Moisture, Bulk& Bag (as shipped)%2.0
Ash content%0.5
45μm Sieve residue%0.05
(Note l)(25g,No.120 US Std Sieve)

Pour densitykg/m3455±40
300% stretching stress (SRB7#)Mpa‘-3.6±1.0
